Siemens Electric Multilayer One Step WPC/Spc Floor Extruder

 Product Description The Newest WSZ-80 Multi Layers One Step WPC/SPC Floor Board Extruder with SIEMENS Electrics with 2 extruders of 80/156(include the 2 sets of Electric Cabinets),the motor is 75KW imported Germany SIEMENSthe max output is 700kg/h for SPC floor board and 450kg/h for WPC floor board 1)Surface

Featured Products



Product Description


The Newest WSZ-80 Multi Layers One Step WPC/SPC Floor Board Extruder with SIEMENS Electrics with 2 extruders of 80/156(include the 2 sets of Electric Cabinets),the motor is 75KW imported Germany SIEMENS

the max output is 700kg/h for SPC floor board and 450kg/h for WPC floor board

1)Surface can be laminated with different design decoration film

2)Laminate wear-resisting layer at top surface

3)Emboss with different design

4)Sound insulation cushion layer can be laminaed at bottom side

Finished Product Size(970mm)1220mm with thickness:2mm-8mm
Main MaterialPVC/CaCO3/Processing Additives
Extruder80/156 Conical Double-Screw Extruder
Production Capacity700kg/h(450kg/h)
Air Pressure0.6-0.8Mpa/min
Power Supply3P/380V/50HZ

Multi Layers One Step WPC/Spc Floor Board Extruder with Siemens Electrics


Main Features

Multi Layers One Step WPC/SPC Floor Board Extruder with SIEMENS Electrics

1.Frequency Changer is SIEMENS G120 Series(the best one in SIEMENS)

2.Main Motor/Cutter Motor/AC Contactor/Thermal Overload Relay are Germany SIEMENS

3.PLC is SIEMENS

4.Breaker is SIEMENS from Germany

5.OMRON Japan

6.Origin of Screw:Zhousan,Zhejiang

7.The mould is designed by our company with the latest technology in China

8.5-Roller Calender System

9.Material formulation:we can input 100%recycled material.

10.Our Certificates :CE,ISO9001,SGS,TUV

We are the strategic partner relationship with SIEMENS



Production Flow

The Multi Layers One Step WPC/SPC Floor Board Extruder with SIEMENS Electrics include
Multi Layers One Step WPC/Spc Floor Board Extruder with Siemens Electrics

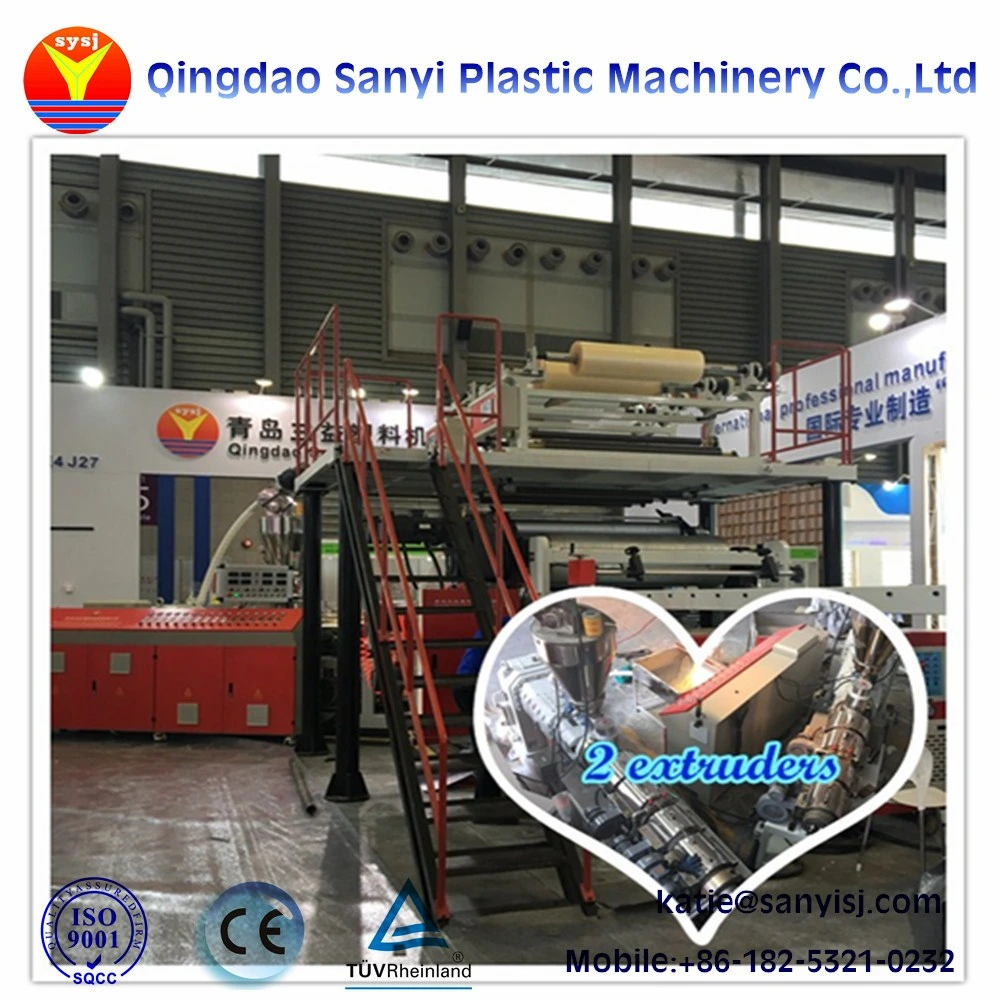

1)Two extruders of 80/156 Conical twin-screw extruder

2)T type Mould

3)5-roller/9-roller Calender with online lamination device

4)Cooling Bracket+Air Curtain

5)Side Trimming Device

6)Haul off device

7)Precision shearing machine

8)Stacker



Auxiliary Machines

We provide the Auxiliary Machines of Multi Layers One Step WPC/SPC Floor Board Extruder
No.Name of MachineTypeQuantity
1CrusherSWP3801 set
2GrinderSMF6601 set
3Heat/Cooling MixerSRL-Z800/25001 set
4Automatic Robot1 set
Product Uses

SPC/WPC flooring is the new environmental Super Floor,adopts the natural stone powder and PVC resin powder as the base material, and is coated with polymer wear-resistant layer, and is processed by Multi Layers One Step WPC/SPC Floor Board Extruder with SIEMENS Electrics.The whole process does not use glue, paint and other substances containing formaldehyde and toluene. The materials used are non-toxic formaldehyde free, waterproof sterilization, convenient installation, realistic lines, super wear-resistant waterproof, flame retardant and heat resistant, it is representative of twenty-first Century new high-tech ground material. Because of the excellent stability and durability of the SPC floor, this kind of floor has been popular in developed countries in Europe and America.

Multi Layers One Step WPC/Spc Floor Board Extruder with Siemens ElectricsMulti Layers One Step WPC/SPC Floor Board Extruder with SIEMENS Electrics is able to

produce the different thickness(2mm-8mm) with various designs SPC Flooring according to your requestments

The SPC Flooring produced by SANYI Multi Layers One Step WPC/SPC Floor Board Extruder with SIEMENS Electrics is widely used in many different lines for various application including:

Department Store,Hotel,Restaurant,Bank,Office,Residence



Certifications

 Qingdao Sanyi Plastic Machinery Co.,Ltd Certification

Multi Layers One Step WPC/Spc Floor Board Extruder with Siemens Electrics

Our Services


Qingdao Sanyi Plastic Machinery Co., Ltd. located in Qingdao, City,Shandong Province,China

SANYI is the China leading professional manufacturer specializes in producing the one step multi layers SPC floor board machine,one step multi layers WPC floor board machine(we already apply the 12 patents) and provide the thoughtful and 1st class of service for you in China.

Multi Layers One Step WPC/Spc Floor Board Extruder with Siemens Electrics

1.Development Center

We establish the new field of research and development centers and the building template center in 2014

2.Well-known Experts

Employ the domestic well-know experts, and cooperate the Nations front-line experts,combine the country's top level professional theory and our experience which is our technical team a decade of experience. And we create the new series of low-cost high quality formula.

3.Germany Technology

SANYI learn the German technology and SANYI is the unique company cooperates with the German Krauss-Maffei machinery enterprises  (World top machinery companies) in China at present

4.Sophisticated Brand

SANYI is the unique domestic machine industry who signed the strategic partnership agreement with SIEMENS company. The use of sophisticated brand of sophisticated equipment.

5.Conference

SANYI machinery hosted and co-hosted a variety of industry annual meeting in recent years, (hosted the China Plastics Processing Industry Association 2014 Annual Meeting, and co-organized by China Association for the 30th anniversary of Formwork and Scaffolding Annual Meeting) we combine and take good use of the theory and experience of domestic experts and scholars

SANYI is the unique Chinese factory provides the LIFE-LONG service system as we take much attention the feedbacks from our customers

Pre-sale service:

To provide information and market research,to provide consultation,to provide many kinds of conveniences and market service,etc.
The main purpose of pre-sales service is to help customers make the project planning and system requirements analysis. Make our products maximum to meet clients' requirements. Also play the greatest overall economic benefits of customers' investment.

After-sale service:
To install products and test products freely for customers.
To provide the formulas and technologies of relevant products and the information of chemical materials manufactories.
To direct technology aspect of relevant use according to customers' requirements
To provide technical training for clients' employees.
To be responsible for maintenance service, door-to-door service under the necessary circumstance.

Technology support:
To provide installation and test for the machine.
To provide formulas and technology of relevant products.
To provide information of chemical material manufactories.
To provide technical training for clients' employees.

SANYI is the 1st company in China running the machines at the exhibition
Multi Layers One Step WPC/Spc Floor Board Extruder with Siemens Electrics
