LC-850NC CNC DUPLEX MILLING MACHINE Super (Belt drive)Product Description Once setting parameter in CNC system, it can be automatic positioning,automatic measurement,six-side processing, which can reduce working intensity, increase productivity and ensure high accuracy for dimension/squareness/parallelism.Automatic Centerin

Featured Products

LC-850NC CNC DUPLEX MILLING MACHINE Super (Belt drive)
Centerless Grinding Machine-Surface Grinding Machine-Newest Technology Milling Instead Grinding-Cylinder Blok Surface Grinding-Milling Machine-Milling Machine
Product Description

Once setting parameter in CNC system, it can be automatic positioning,automatic measurement,six-side processing, which can reduce working intensity, increase productivity and ensure high accuracy for dimension/squareness/parallelism.


Centerless Grinding Machine-Surface Grinding Machine-Newest Technology Milling Instead Grinding-Cylinder Blok Surface Grinding-Milling Machine-Milling Machine

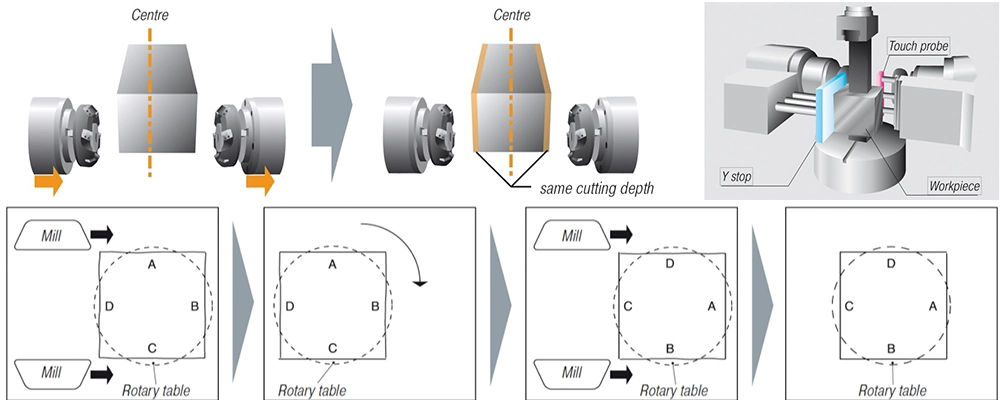

Automatic Centering




Centerless Grinding Machine-Surface Grinding Machine-Newest Technology Milling Instead Grinding-Cylinder Blok Surface Grinding-Milling Machine-Milling Machine

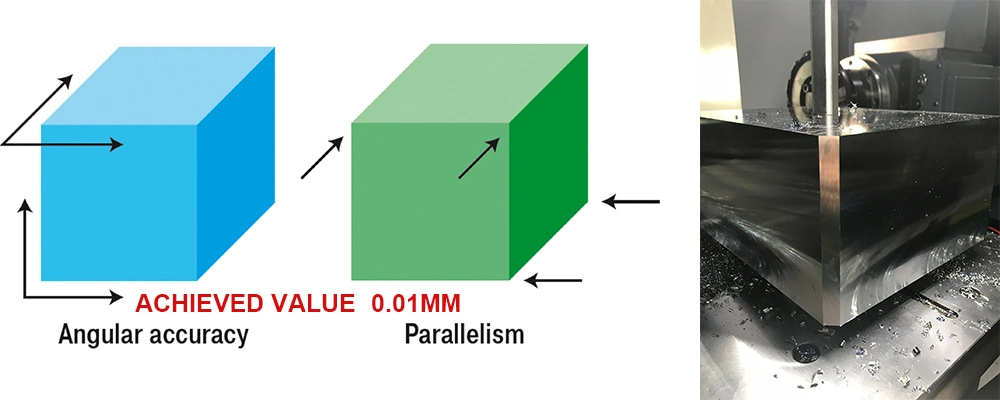

High Precision



Centerless Grinding Machine-Surface Grinding Machine-Newest Technology Milling Instead Grinding-Cylinder Blok Surface Grinding-Milling Machine-Milling Machine

Base Data

Main specification      LC-850NC Super(Belt Drive )
Items Detail
Cutting capacityControl axis number4
Cutting capacity mm3mm*2
Cutting width mm60-850
WorktableDimensions  mm550*550
Max loading weight  kg2000
SpindleSpindle speed(Infinitely variable speeds) rpm0-600
Spindle power  kw2*18.5
Spindle taperBT50(7:24)
Cutter diameter  mm300
XYZ axisX/Y/Z axis motor
power  kw
2/2/3
X/Y/Z Max feed speed m/min10/10/10
X/Y/Z Max cutting speed
m/min
6/6/6
AccuracySquareness mm/300mm0.015
Accuracy for dimension mm/300mm0.015
Tank capacityHydraulic oil tank  L80
Lubrication oil tank  L2*3L
PowerPower AC380/220V 40KVA
Net weightNet weight kg12500
Product sizeProduct size mmW3620*L3800*H2600

Main part
Sort Name Quantity Origin
MachineryBall screw
(XYZ axis)
3Taiwan HIWIN
Guide rail3Quenched hard guide rail
Main Spindle
(Horizontal)
2Japanese SEIKO
Flexible stainless steel plate shield of worktable2EHONG
Base casting1HT300
Automatic lubricating machine3Domestic
Oil line 3Domestic
Aluminium tube
Bearing /Japan NSK
 Electrical appliancesCNC system1Japan Mitsubishi
MPG1Japan Mitsubishi
Servo motor4Japan Mitsubishi
High precision rotary table1Taiwan Bramd
Spindle motor2MK
AC contactor /Schneider
Relay /Schneider

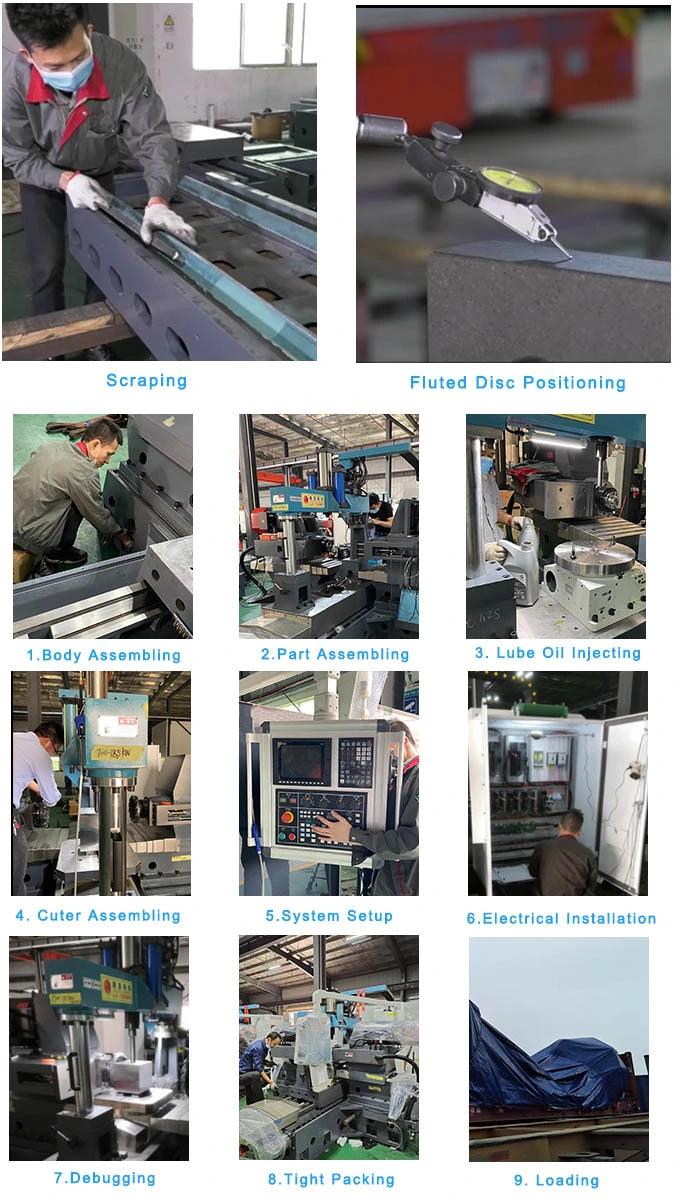

Manufacturing


Centerless Grinding Machine-Surface Grinding Machine-Newest Technology Milling Instead Grinding-Cylinder Blok Surface Grinding-Milling Machine-Milling Machine


Production Capacity

Factory Address: No.1 Yintai North Road, Shutian, Humen Town, Dongguan, City, China
R&D Capacity: Own Brand, ODM, OEM
No. of R&D Staff: 160
No. of Production Lines: Above 10
Annual Output Value: US$15Million




APPLICATION

Centerless Grinding Machine-Surface Grinding Machine-Newest Technology Milling Instead Grinding-Cylinder Blok Surface Grinding-Milling Machine-Milling Machine



Company Profile

        Launch Precision Machinery Co.,Ltd (LC Machine) is a professional modern enterprise, with long-term research & development, manufacturing, sales, after-service. The company gathered engineer team who engaged in CNC machine and mould manufacturing for decades , won trust and support from domestic and oversea clients by good idea, excellent design,reliable quality,full service.
       The company has absorbed the advantages of NC technology from Germany and Japan and gathering the leading technology from domestic and foreign industries. All machines are marked ISO 9001 and CE, exported to 58 countries. Main products: Duplex milling machine, Vertical gantry milling machine, Side milling machine, Powerful gantry grinder, Cutting machine, Chamfering machine etc.
       We are committed to be the No.1 brand in 6 side milling machine and one-stop service supplier in mould processing industry, serving global client , promoting mould processing industry to reach new level.



Centerless Grinding Machine-Surface Grinding Machine-Newest Technology Milling Instead Grinding-Cylinder Blok Surface Grinding-Milling Machine-Milling Machine


After-Sale Service

1. Installation services for free.
2. Operation training for free.
3. We will create files for every client, to track product quality and after service.
4. Providing one year (12 months) warranty for free except for the wrong operation by the user . The spare part is not on the free warranty list.
5. Providing maintenance and repair service termly.
6. Seller will provide solution way within 72 hrs once receiving A-F service request from the buyer.



Centerless Grinding Machine-Surface Grinding Machine-Newest Technology Milling Instead Grinding-Cylinder Blok Surface Grinding-Milling Machine-Milling Machine




FAQ
Q: Are you a manufacturer or Trading Company?
A: We are a innovative interprise with rich import & export experience and 10 professional production line.Warmly welcome you to visit our factory.

Q: Do you have Agency in my country?
A: With the development of our company, we are expanding export gradually to get a bigger worldwide share of marketing.(The United States/ Korea / India / Southeast Asia etc.). Till now, we have agence in India/Korea/Thailand/ Vietnam, please feel free to contact us to get more detail.

Q: How can I Install the machine, and What should I do if my machine was broken down
A: We provide free installation service to your home. If your machine was broken, please contact us immediately and we will give you solution way within 48 hours.

Q: Can you support OEM Service?
A: Sure, As your requirement, We would like to make the plan and provide the best service for you.
